Press Transfer Systems
General Specifications
CMT 80
3 Axis Transfer System
Transfer System
General Specification
Number of Unit
1 set (2 bar)
Number of Axis
3
Maximum Working Speed
16spm
Number of Servo Motors
6
Dimension of Transfer Bars
80x80mm
Transfer Bar Maximum Carrying Capacity
80Kg, with grippers and sheet metals
Grippers
Not included
Lubrication System
Point lubrication for each axis
INA
Transfer Bars Park Counterforts
4 (1 additional bolster included)
Exit Part Conveyor
Not included

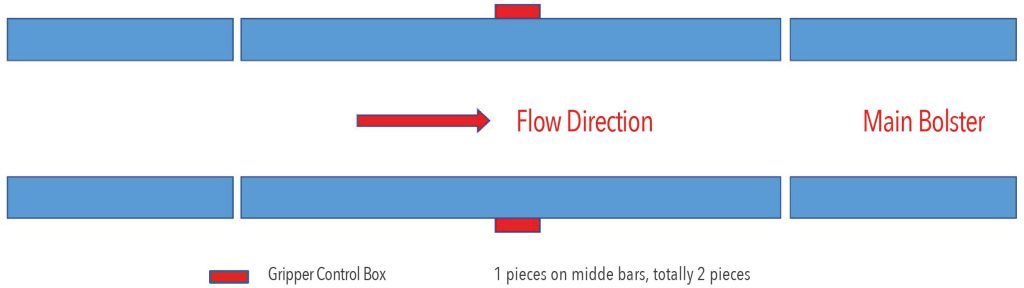

Gripper Control Boxes
X Axis
Servo Motor
2 pcs, multiturn absolute, with brake
SIEMENS / BECKHOFF / REXROTH
Gearbox
Grinded, helisel rack/pinion
ALPHA WITTENSTEIN
Linear Rail and Cars
THK/INA
Y Axis
Servo Motor
4 pcs, multiturn absolute, with brake - 1FK…
SIEMENS / BECKHOFF / REXROTH
Gearbox
Grinded, helisel rack/pinion
ALPHA WITTENSTEIN
Linear Rail and Cars
THK/INA
Z Axis
Servo Motor
4 pcs, multiturn absolute, with brake - 1FK…
SIEMENS / BECKHOFF / REXROTH
Gearbox
Grinded, helisel rack/pinion
ALPHA WITTENSTEIN
Linear Rail and Cars
THK/INA
Transfer Bars Details
Locking System
Manual bar locks. The locking of fixed bars and center bars is performed manually.
Gripper Connection Type
With T slots on the bars
Air Flow Passage System
With quick connect pneumatic fittings, manually
Dynamic Torque Control
With Dynamic Torque Control, transfer system stops instantaneously when defined limit torque value reached. This allows preventing occupational accidents and damages.
SimpLinx Remote Connection
Our machines are always accessible with the SimpLinx remote connection module. Intervention and diagnosis can be done by connecting to your machine remotely. Processes in the fastest way possible by our technical service team in case of any malfunction. It helps to connect without getting stuck cause of your port or firewall restriction procedures.
Safety Package
Safety Controller
SIEMENS
Fence System
SURFENCE
Safety Door
SURFENCE
Locking System
EUCHNER
Light Barrier
SICK
